ASSEM BLY

betamotor.com

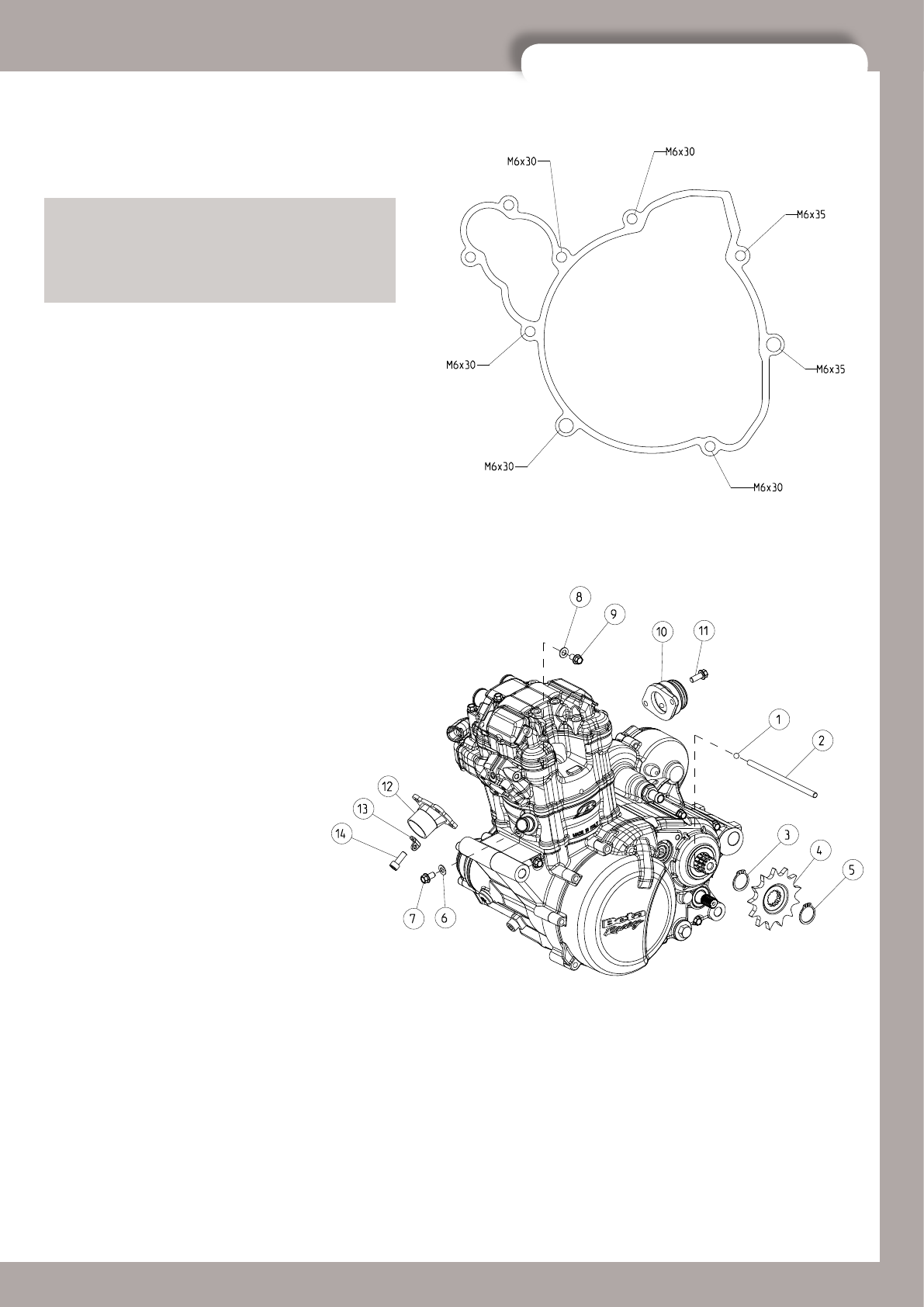

Fit the flywheel cover to the left-hand crankcase half

and retain it with the bolts indicated in the picture

above. Tighten the bolts to 10 Nm.

N.B. Do not tighten the two M6x35 screws at this

stage, as they will also be used to retain the sprocket

cover which will be fitted only after the chain has

been passed around the sprocket, once the motorcy-

cle is assembled.

4.20 FINAL DETAILS

Insert first the ball (1) and then the clutch pushrod

(2) after you have lubricated them with engine oil.

Fit the front sprocket (4) to the output end of the

layshaft, retaining it with the two circlips (3, 5).

Fit the air bleed screw for the cooling circuit (9) with

its washer (8) and the water drain screw (7) with its

washer (6), tightening both of them to 8 Nm.

Connect the carburettor flange (10) and tighten the

two M6x16 bolts (11) to 10 Nm.
